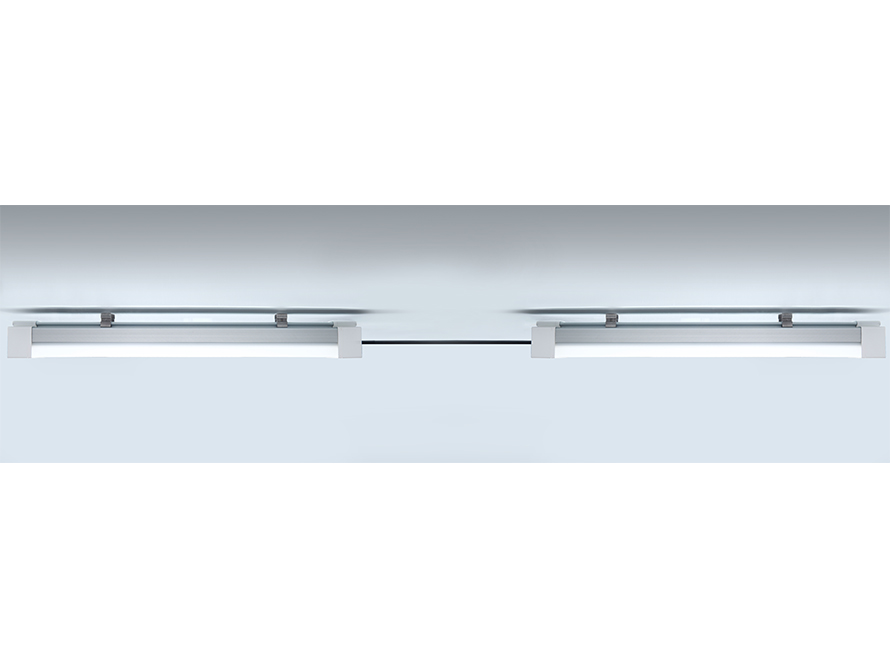

200W LED Tri-Proof Linear Light 5FT
200W LED Tri-Proof Linear Light is a highly durable, energy-efficient lighting solution specifically designed for challenging environments. The term “tri-proof” refers to its three main protective features: waterproof, dustproof, and corrosion-resistant. These lights typically have a sturdy, sealed construction and are made from high-quality materials, making them well-suited for use in areas exposed to moisture, dust, or corrosive elements.
Key Features:
Corrosion-resistant: Made from robust materials that resist corrosion from chemicals or salt in the air, extending the light’s lifespan.
Waterproof: Often IP65 or higher rated, these lights are protected against water ingress, allowing them to function reliably in wet or humid conditions.
Dustproof: The sealed design keeps out dust and other particles, which is critical in environments with high dust levels.
Electrical Performance:
Temperature Performance
Special technology
Physical Performance
Typical Application of 200W LED Tri-Proof Linear Light
Technical Information
| Model | CML-5FT-200W |
| LED Chip | 384pcs |
| Power | 200W |
| CCT | 3000K-6500K |
| Luminous Flux | 21000lm |
| Voltage | AC100-240V |
| CRI | Ra80 |
| Shade | Froested or Stripe |
Materials & Finish
- Housing: Aluminum
- Lens: Frosted or stripe lens
- Highly Efficient Heat Dissipation
Driver
- Power Efficiency: 93% isolated driver 8w-200w
- Power Factor: 0.99(110V), 0.96(220V)
- Ripple current: 10
- THD: 12
- Protection Function:lightening-protection,short-circuit protection over-current protection,over-voltage protection,over-heat protection
- Hi-Pot test: Withstand 4000V
- Surge Protection: With 6KV/4KV
- Working Temperature: -40° ~ 60°
- Driver Efficiency: >93%
- Warranty: 5 years
- Dimming Options: PWM/0-10V/1-10V/DALI/ZIGBEE
- DC Version: DC24V or DC12Volt.
- DMX512
- Plug can be supplied based on request
