400Watt LED Marine Flood Light LED Fishing Boat Deck Light Model Number RGL2-400A

RGL2 Series 400 Watt LED Marine Flood lights feature a more advanced thermal dissipation solution, and 316 stainless steel bracket rotatable 360°, Die-Casting Aluminun housing with anti-corrosive powder coating, also with Ultra Lightweight, Highly Efficient Heat Dissipation, and Multiway Air Flow+ Aluminum Cooling Finexternal ensure an superior heat dissipation.

  • SAMSUNG LED Chip
  • MEANWELL LED Driver
  • Die-casting aluminum lamp housing with power coated finish
  • 316 stainless steel bracket
  • Unique and exquisite industrial design
  • Up to 1200w power options
  • Professional light distribution
  • 80% lumen maintenance over 50,000hours
  • 110-480Vac input voltage without additional adapter
  • 0-10VDC, DALI and wireless control available
  • Photocell & motion sensor system available
  • Built-in surge protection & thermal protection
  • High uniformity & color rendering index
  • Multiway Air Flow+ Aluminum Cooling Fin

Parameter

  • Wattage: 200/300/400/500/600
  • Light Source: SAMSUNG
  • Driver: Meanwell
  • Lamp Luminous Flux: 130LM/W
  • CRI: Ra>70
  • CCT: 2700-6500K
  • Rated Voltage: AC 90-305V, 50-60Hz
  • Power Factor:>0.95
  • Beam Angle: 40/60/120/140*60 degree
  • IP Rate: IP67
  • IK Rate: IK10
  • Heat Sink: Die-cast Aluminum colling fin
  • Operating Temperature: -40 ~ 60 degree

Typical Application

  • LED boat lighting
  • LED port lighting
  • LED sports stadium lighting
  • LED architectrue lighting
  • LED tunnel lighting
  • LED factory lighting
  • LED bridge lighting
  • LED parking lot lighting
  • LED petrol stadion lighting
  • LED cold storage lighting
  • LED high mast lighting
  • LED warehouse lighting

Technical Information

ModelWattageLumen FluxNet WeightDimensionIP RateIK RateColor TemperatureInput VoltageBeam AngleDatasheet
RGL2-200A200W26000lm24kg460×388×220mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog
RGL2-300A300W39000lm24kg460×388×220mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog
RGL2-400A400W52000lm24kg460×388×220mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog
RGL2-500A500W65000lm24kg460×388×220mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog
RGL2-600A600W78000lm24kg460×388×220mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog
RGL2-800A800W104000lm48kg460×388×982mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog
RGL2-1000A1000W130000lm48kg460×388×982mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog
RGL2-1200A1200W15600048kg460×388×982mmIP67IK102700K/3000K/4000K
/5000K/6000K
100V-305VAC40°, 60°, 120°, 140°x60°Download Catalog

Materials & Finish

  • Housing: Die-cast aluminum
  • Finish: Anti-corrosive powder coating
  • Lens: Tempered Glass

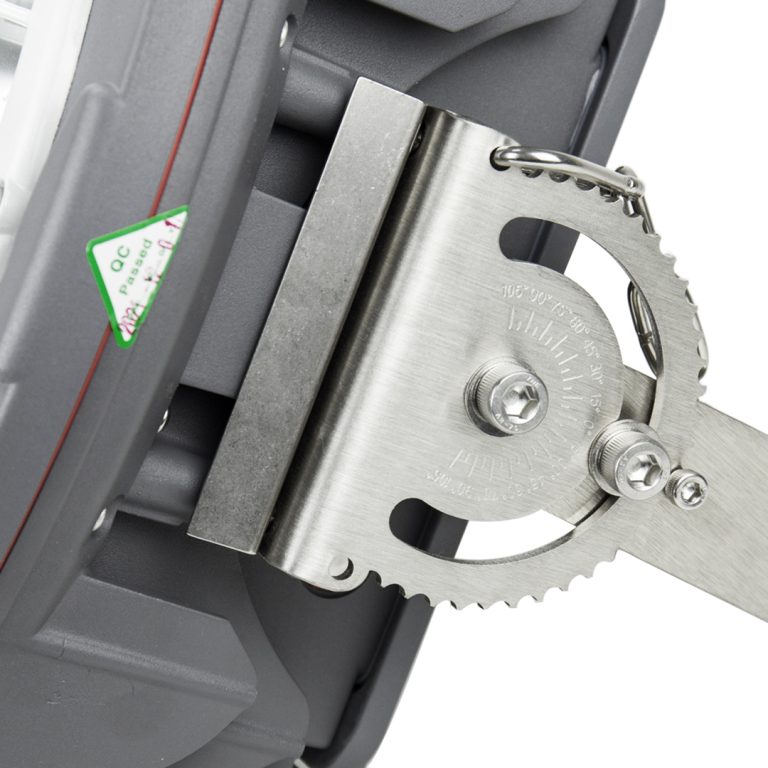

  • Arc bracket rotatable 270°
  • Rugged A4 316 stainless steel bracket
  • RMRS Marine grade certificate
  • Highly Efficient Heat Dissipation
  • Multiway Air Flow+ Aluminum Cooling Fin

Driver

  • LED Driver Brand: Meanwell
  • AC Input Range: 100-305Vac, 50/60Hz
  • AC Inrush Current: Cold Start, 65A at 230Vac
  • DC Input Range: 142-431Vdc
  • Power Factor:>0.9
  • THD: <20%
  • Surge Protection: With 6KV/4KV
  • Working Temperature: -40° ~ +90°
  • Driver Efficiency: >93%
  • Warranty: 5 years

Optical

  • Led Chips : SAMSUNG
  • Lumen Efficiency: 130lm/w
  • Color Temperature: Warm White Like 2700K, 3000K, 4000K, and Cool White like 5000K, 6000K, 6500K, or red, green, blue, RGB
  • SDCM: <5
  • LM80 report available
  • Dimming Options: PWM/0-10V/1-10V/DALI/ZIGBEE
  • DC Version: DC24V or DC12Volt.
  • DMX512
  • Plug can be supplied based on request
  • Protection grid can be supplier based on request
  • Visor can be supplier based on request

Project References

Suitable for a variety of outdoor and indoor different engineering projects, including factory lights, ceiling lights, building lights, stadium lights, high mast lights, etc.
