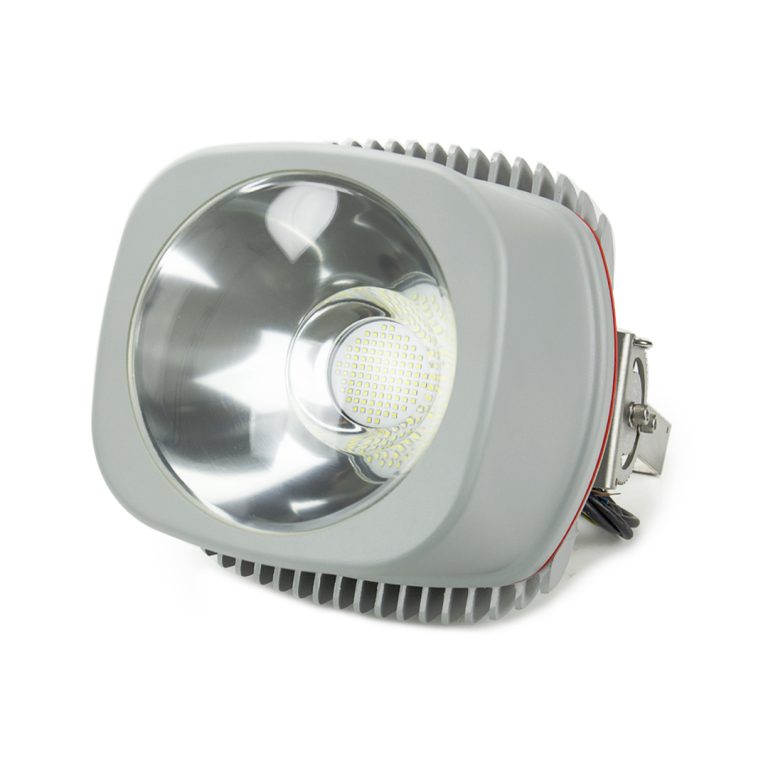

600 Watt Marine LED Flood Light Deck Light Model Number RGL2-600A -

RGL2 Series 600 Watt LED Marine Flood lights feature a more advanced thermal dissipation solution, and 316 stainless steel bracket rotatable 360°, Die-Casting Aluminun housing with anti-corrosive powder coating, also with Ultra Lightweight, Highly Efficient Heat Dissipation, and Multiway Air Flow+ Aluminum Cooling Finexternal ensure an superior heat dissipation.

SAMSUNG LED Chip
MEANWELL LED Driver
Die-casting aluminum lamp housing with power coated finish
316 stainless steel bracket
Unique and exquisite industrial design
Up to 1200w power options
Professional light distribution
80% lumen maintenance over 50,000hours
110-480Vac input voltage without additional adapter
0-10VDC, DALI and wireless control available
Photocell & motion sensor system available
Built-in surge protection & thermal protection
High uniformity & color rendering index
Multiway Air Flow+ Aluminum Cooling Fin

Parameter

Wattage: 200/300/400/500/600
Light Source: SAMSUNG
Driver: Meanwell
Lamp Luminous Flux: 130LM/W
CRI: Ra>70
CCT: 2700-6500K
Rated Voltage: AC 90-305V, 50-60Hz
Power Factor:>0.95
Beam Angle: 40/60/120/140*60 degree
IP Rate: IP67
IK Rate: IK10
Heat Sink: Die-cast Aluminum colling fin
Operating Temperature: -40 ~ 60 degree

Typical Application

LED boat lighting
LED port lighting
LED sports stadium lighting
LED architectrue lighting
LED tunnel lighting
LED factory lighting
LED bridge lighting
LED parking lot lighting
LED petrol stadion lighting
LED cold storage lighting
LED high mast lighting
LED warehouse lighting

Inquire Now Download Catalog

Technical Information

Model	Wattage	Lumen Flux	Net Weight	Dimension	IP Rate	IK Rate	Color Temperature	Input Voltage	Beam Angle	Datasheet
RGL2-200A	200W	26000lm	24kg	460×388×220mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog
RGL2-300A	300W	39000lm	24kg	460×388×220mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog
RGL2-400A	400W	52000lm	24kg	460×388×220mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog
RGL2-500A	500W	65000lm	24kg	460×388×220mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog
RGL2-600A	600W	78000lm	24kg	460×388×220mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog
RGL2-800A	800W	104000lm	48kg	460×388×982mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog
RGL2-1000A	1000W	130000lm	48kg	460×388×982mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog
RGL2-1200A	1200W	156000	48kg	460×388×982mm	IP67	IK10	2700K/3000K/4000K /5000K/6000K	100V-305VAC	40°, 60°, 120°, 140°x60°	Download Catalog

Materials & Finish

Housing: Die-cast aluminum
Finish: Anti-corrosive powder coating
Lens: Tempered Glass

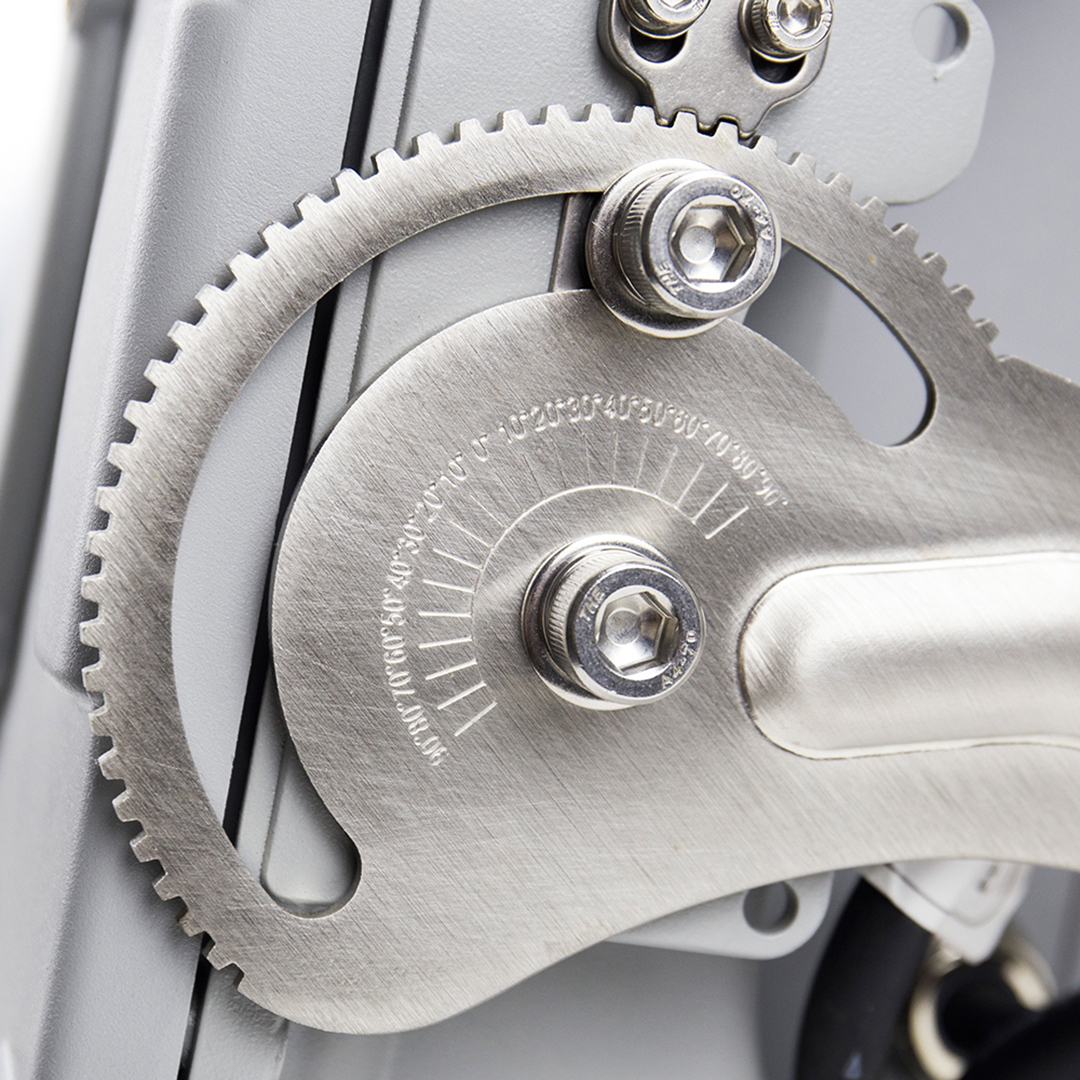

Arc bracket rotatable 270°
Rugged A4 316 stainless steel bracket
RMRS Marine grade certificate

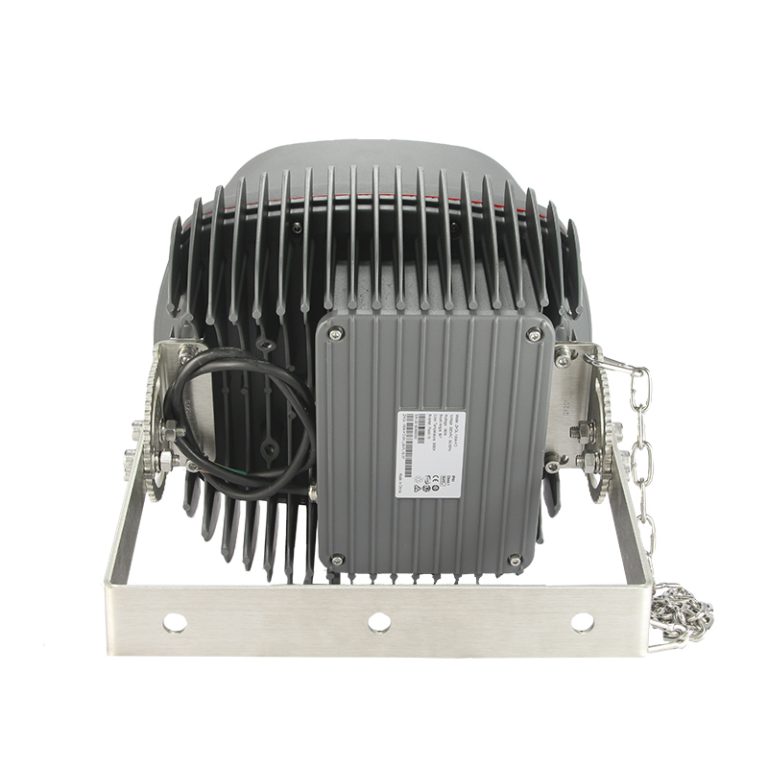

Highly Efficient Heat Dissipation
Multiway Air Flow+ Aluminum Cooling Fin

Driver

LED Driver Brand: Meanwell
AC Input Range: 100-305Vac, 50/60Hz
AC Inrush Current: Cold Start, 65A at 230Vac
DC Input Range: 142-431Vdc
Power Factor:>0.9
THD: <20%
Surge Protection: With 6KV/4KV
Working Temperature: -40° ~ +90°
Driver Efficiency: >93%
Warranty: 5 years

Optical

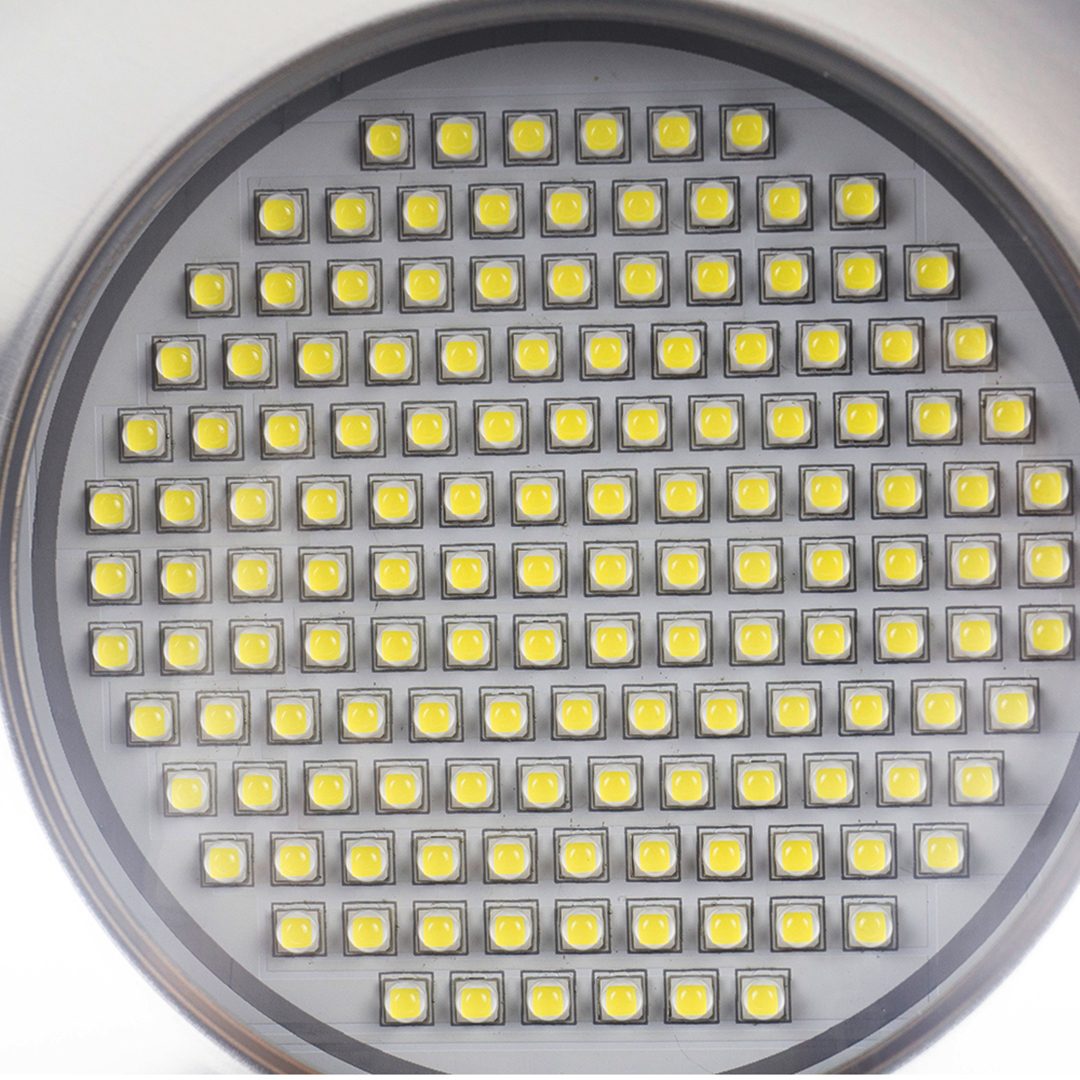

Led Chips : SAMSUNG
Lumen Efficiency: 130lm/w
Color Temperature: Warm White Like 2700K, 3000K, 4000K, and Cool White like 5000K, 6000K, 6500K, or red, green, blue, RGB
SDCM: <5
LM80 report available

Dimming Options: PWM/0-10V/1-10V/DALI/ZIGBEE
DC Version: DC24V or DC12Volt.
DMX512
Plug can be supplied based on request
Protection grid can be supplier based on request
Visor can be supplier based on request

Project References

Suitable for a variety of outdoor and indoor different engineering projects, including factory lights, ceiling lights, building lights, stadium lights, high mast lights, etc.
