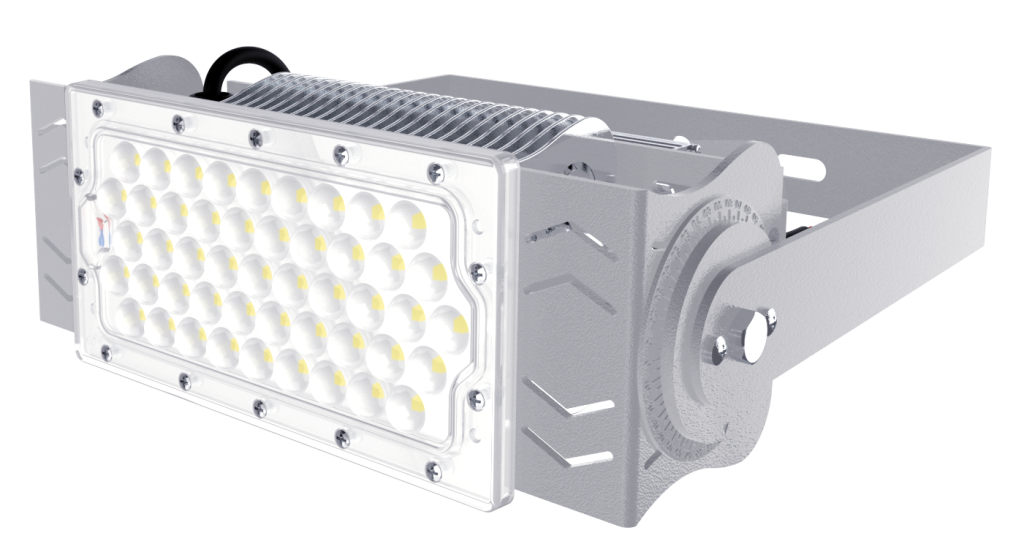

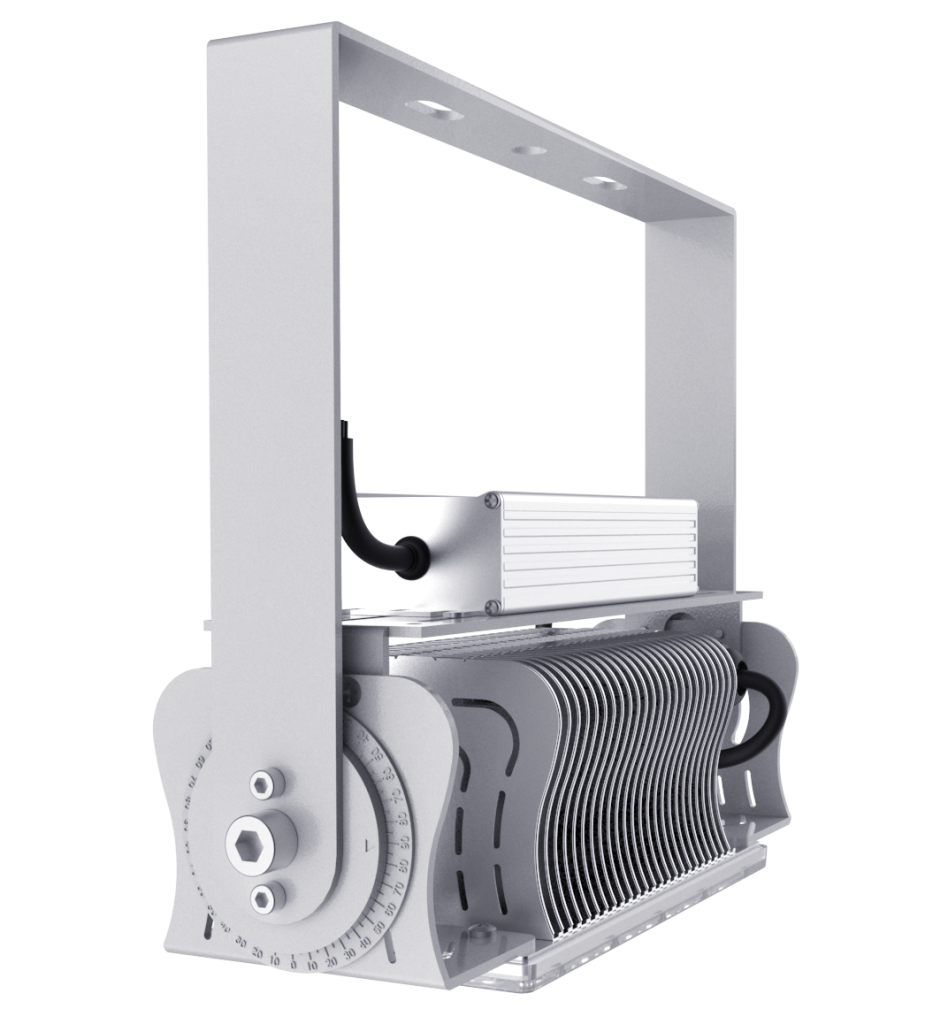

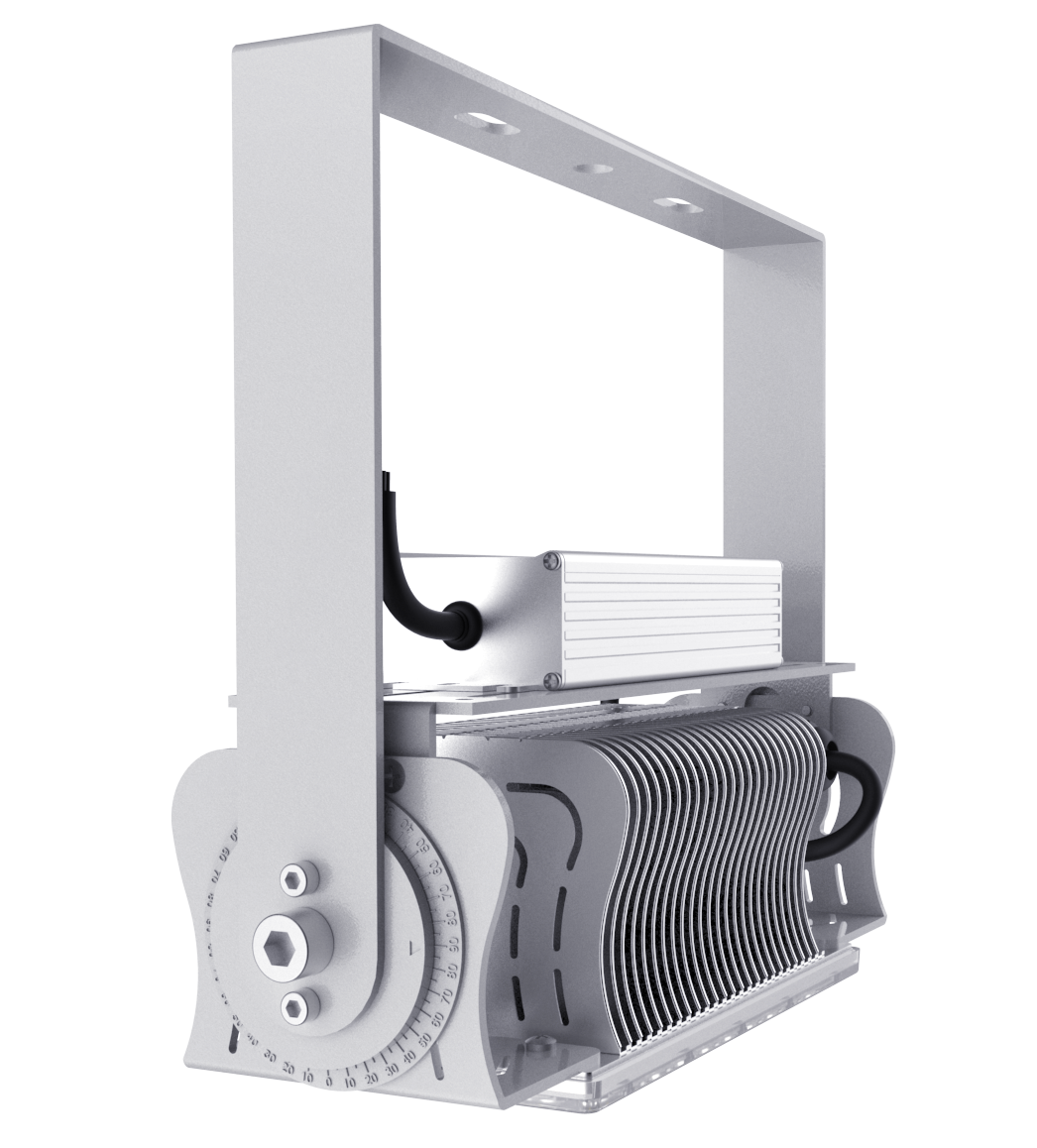

COS-FL-100W LED Flood Light -

COS-FL Series LED Flood lights feature an Arc bracket rotatable 360°, Module rotatable 90°, also with Ultra Lightweight, Highly Efficient Heat Dissipation, and Multiway Air Flow+ Aluminum Cooling Finexternal ensure an superior heat dissipation, with power range from 100w to 800w.

Unique and exquisite industrial design
Up to 800w power options
Professional light distribution
Arc rotage bracket 360 degree
Module rotate 90 degree
Ultra light weight
High efficiency heat dissipation
Multiway Air Flow+ Aluminum Cooling Fin

Parameter

Wattage: 100/200/300/400/600
Light Source: Lumileds
LED quantity: 48LEDs each module
Driver: Meanwell
Lamp Luminous Flux: 150-160lm/w
CRI: Ra>70
CCT: 2700-6500K
Rated Voltage: AC 90-305V, 50-60Hz
Power Factor:>0.95
Beam Angle: 10/30/60/90 degree
IP Rate: IP65
Heat Sink: Aluminum colling fin
Operating Temperature: -40 ~ 60 degree

Typical Application

LED sports stadium lighting
LED architectrue lighting
LED tunnel lighting
LED factory lighting
LED bridge lighting
LED parking lot lighting
LED petrol stadion lighting
LED cold storage lighting
LED high mast lighting
LED warehouse lighting
LED hall lighting

Inquire Now

Technical Information

Model	Wattage	Lumen Flux	Net Weight	LED Chip Qty	Dimension	IP Rate	IK Rate	Color Temperature	Input Voltage	Beam Angle	Datasheet
COS-FL-100A	100W	16000lm	2.9kg	48pcs	291×102×266mm	IP66	IK08	2700K/3000K/4000K /5000K/6000K	100V-240VAC	10°, 30°, 60°, 90°, 120°	Download
COS-FL-200A	200W	32000lm	4.2kg	96pcs	291×219×334mm	IP66	IK08	2700K/3000K/4000K /5000K/6000K	100V-240VAC	10°, 30°, 60°, 90°, 120°	Download
COS-FL-300A	300W	48000lm	5.6kg	144pcs	291×340×324mm	IP66	IK08	2700K/3000K/4000K /5000K/6000K	100V-240VAC	10°, 30°, 60°, 90°, 120°	Download
COS-FL-400A	400W	64000lm	7.4kg	192pcs	485×219×334mm	IP66	IK08	2700K/3000K/4000K /5000K/6000K	100V-240VAC	10°, 30°, 60°, 90°, 120°	Download
COS-FL-600A	600W	96000lm	10.3kg	288pcs	485×340×324mm	IP66	IK08	2700K/3000K/4000K /5000K/6000K	100V-240VAC	10°, 30°, 60°, 90°, 120°	Download

Materials & Finish

Housing: Die-cast aluminum
Lens: PC and PMMA
Arc bracket rotatable 360°
Module rotatable 90°
Ultra Lightweight
Highly Efficient Heat Dissipation
Multiway Air Flow+ Aluminum Cooling Fin

Driver

LED Driver Brand: Meanwell
AC Input Range: 100-277Vac, 50/60Hz
AC Inrush Current: Cold Start, 65A at 230Vac
DC Input Range: 142-431Vdc
Power Factor:>0.9
THD: <20%
Surge Protection: With 6KV/4KV
Working Temperature: -40° ~ +90°
Driver Efficiency: >93%
Warranty: 5 years

Optical

Led Chips : Luminleds
Lumen Efficiency: 150-160lm/W
Color Temperature: Warm White Like 2700K, 3000K, 4000K, and Cool White like 5000K, 6000K, 6500K, or red, green, blue, RGB
SDCM: <5
LM80 report available

Dimming Options: PWM/0-10V/1-10V/DALI/ZIGBEE
DC Version: DC24V or DC12Volt.
DMX512
Plug can be supplied based on request
Customized optical angle combination

Project References

Suitable for a variety of outdoor and indoor different engineering projects, including factory lights, ceiling lights, building lights, stadium lights, high mast lights, etc.
