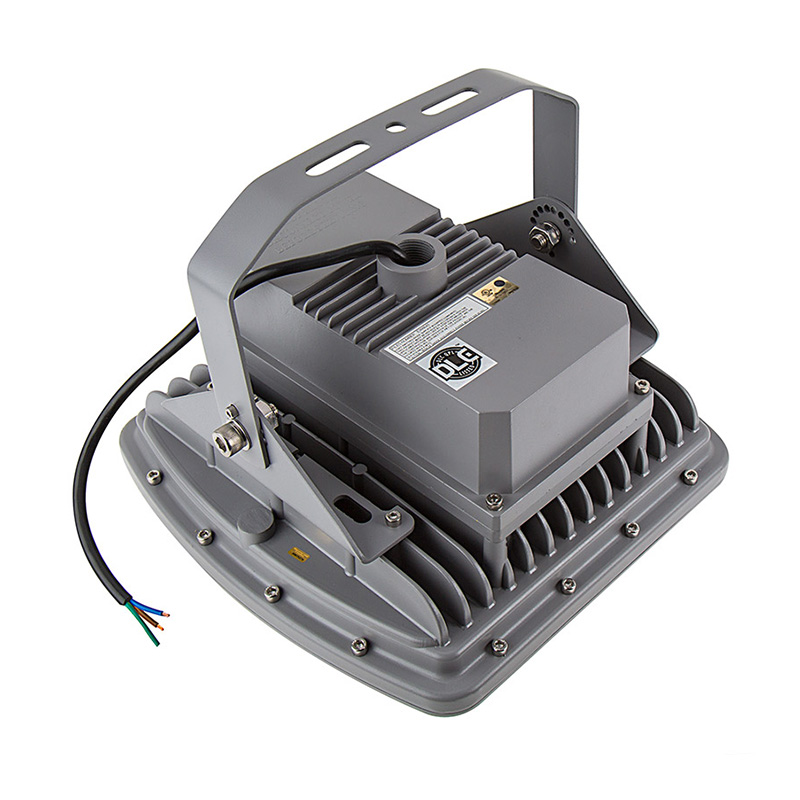

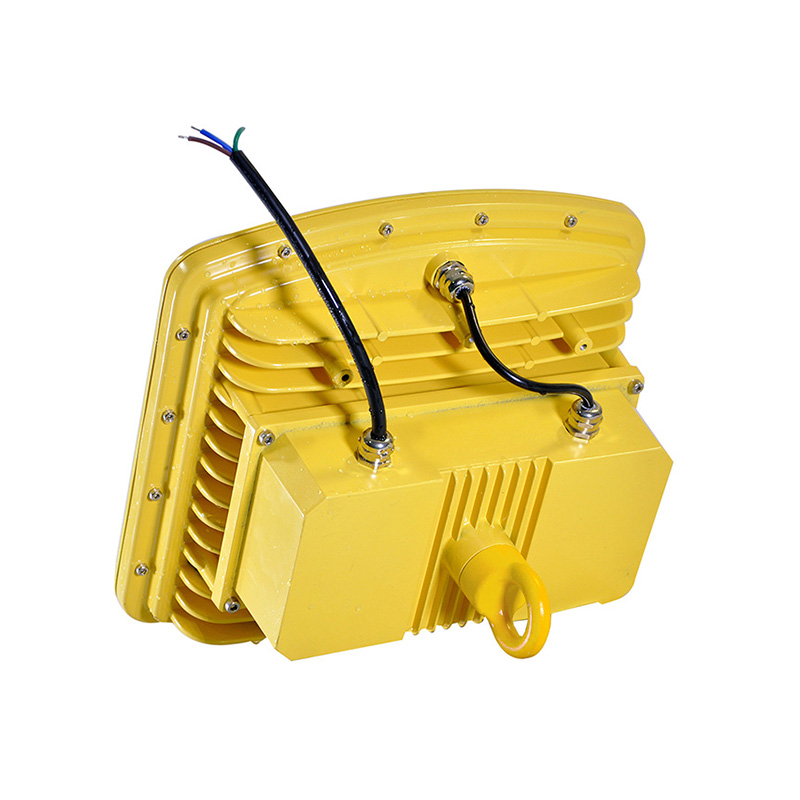

100 Watt LED Ex-Proof Flood Light For Harsh Environment Model Number REP-J100
LED explosion-proof lights are very important for environments like hazardous gases or flammable particles sites, such as oil refineries, chemical plants, mining sites, and manufacturing facilities. These lights provide reliable illumination also preventing sparks or heat that could cause explosions, ensuring both safety and compliance with industrial regulations. Durability, energy efficiency, and strong resistance to impact and corrosion, making them suitable for harsh environments. As well as robust construction and advanced heat dissipation can reduce maintenance needs and LED technology also has great energy saving performance.

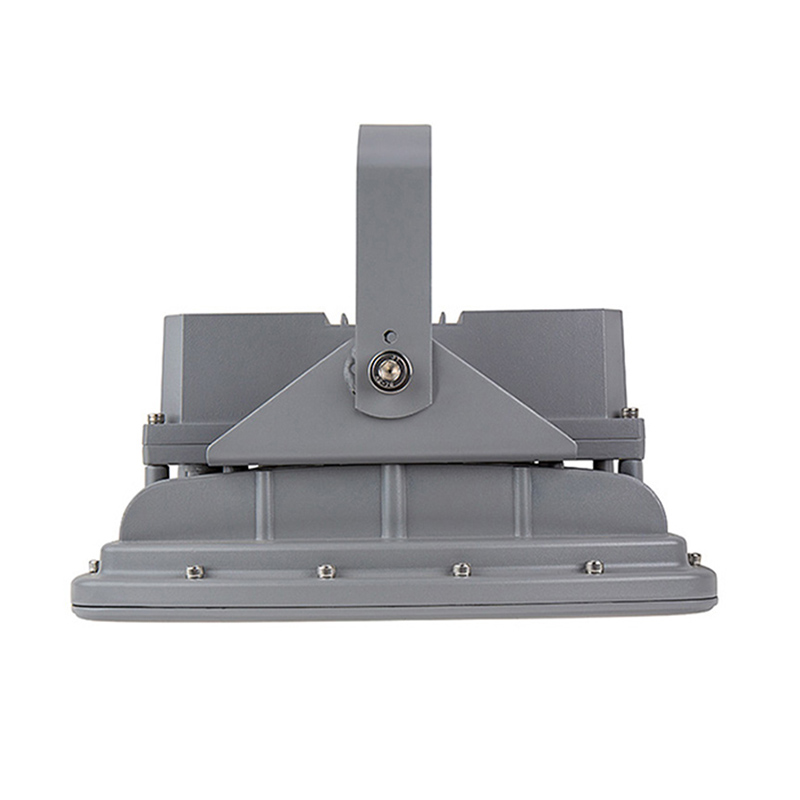

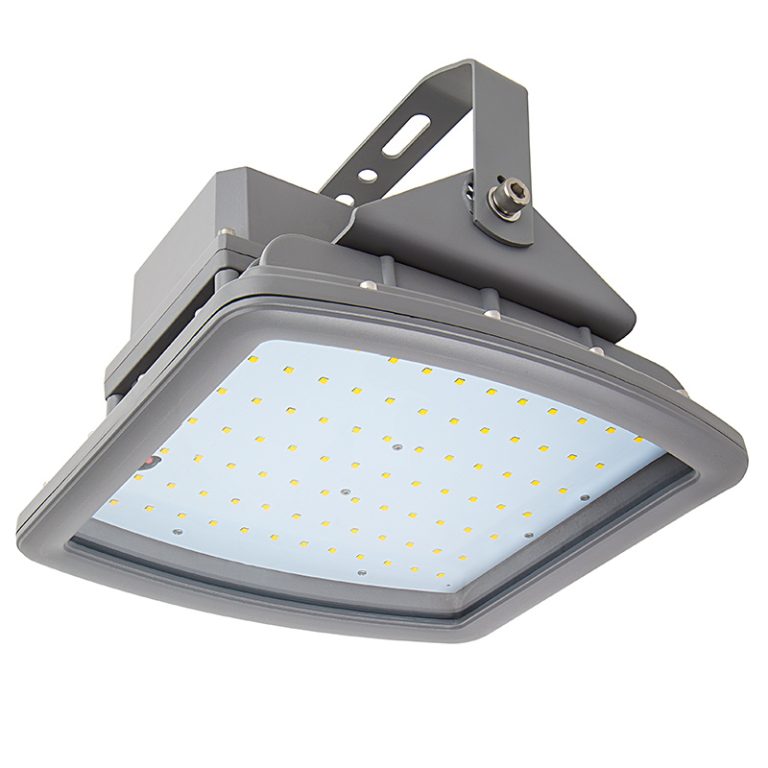

REP-J100 100 Watt LED Explosion Proof lights feature a Die-Casting Aluminun housing with anti-corrosive powder coating, also with Ultra Lightweight, Highly Efficient Heat Dissipation, and Multiway Air Flow+ Aluminum Cooling Finexternal ensure an superior heat dissipation.
Parameter

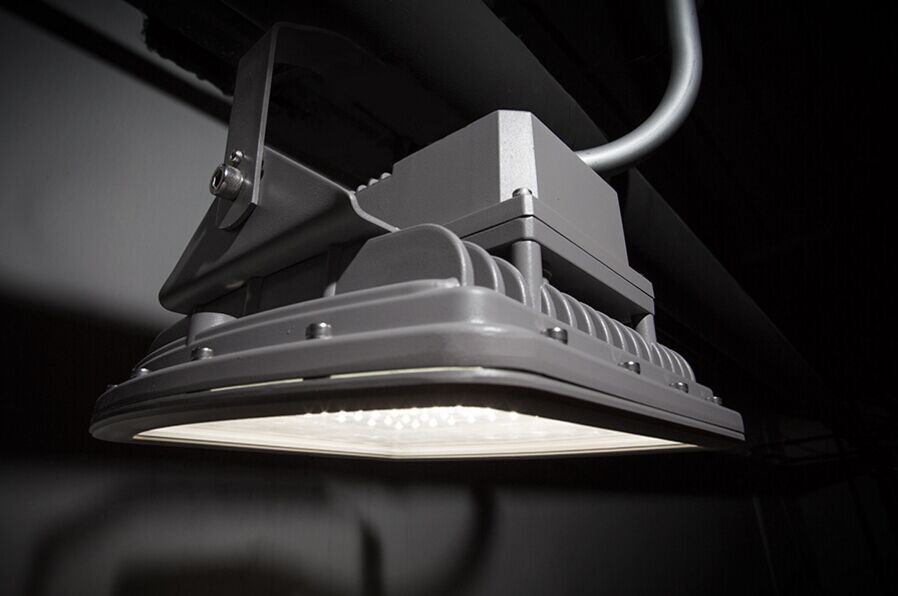

Typical Application
Technical Information
| Model | Lumen Flux | Net Weight | Dimension | IP Rate | IK Rate | Datasheet | |
|---|---|---|---|---|---|---|---|

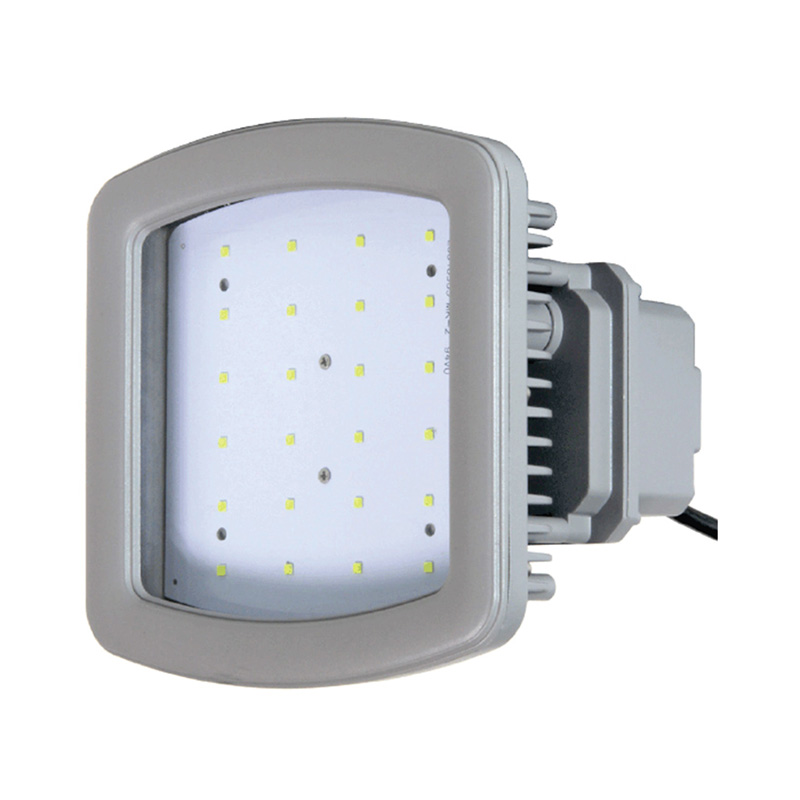

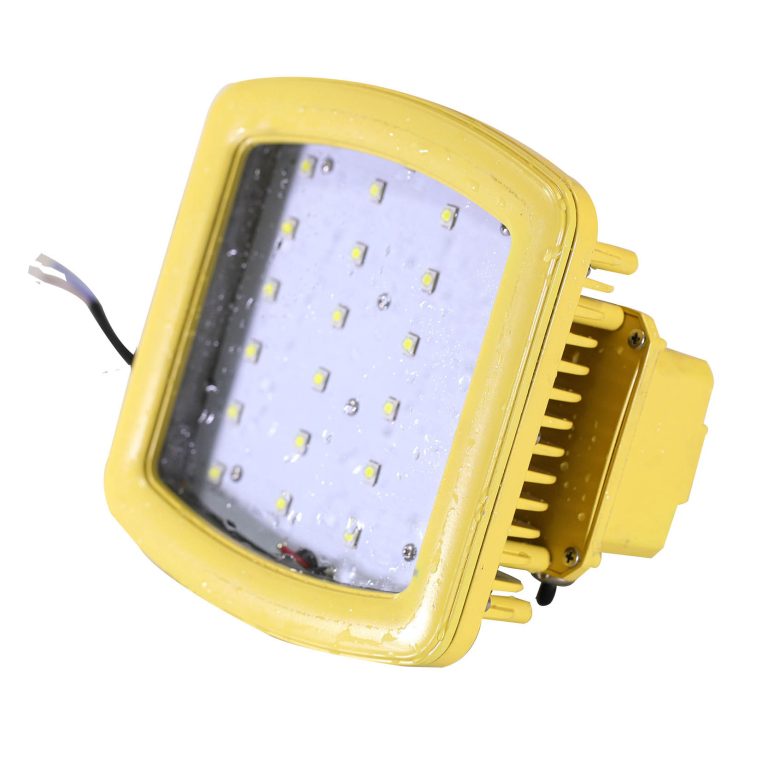

| REP-J40 | 30W | 3480LM | 4KG | 200×200×270mm | IP68 | IK10 | Download |
| REP-J100 | 100W | 11600LM | 7.5KG | 300×300×175mm | IP68 | IK10 | Download |

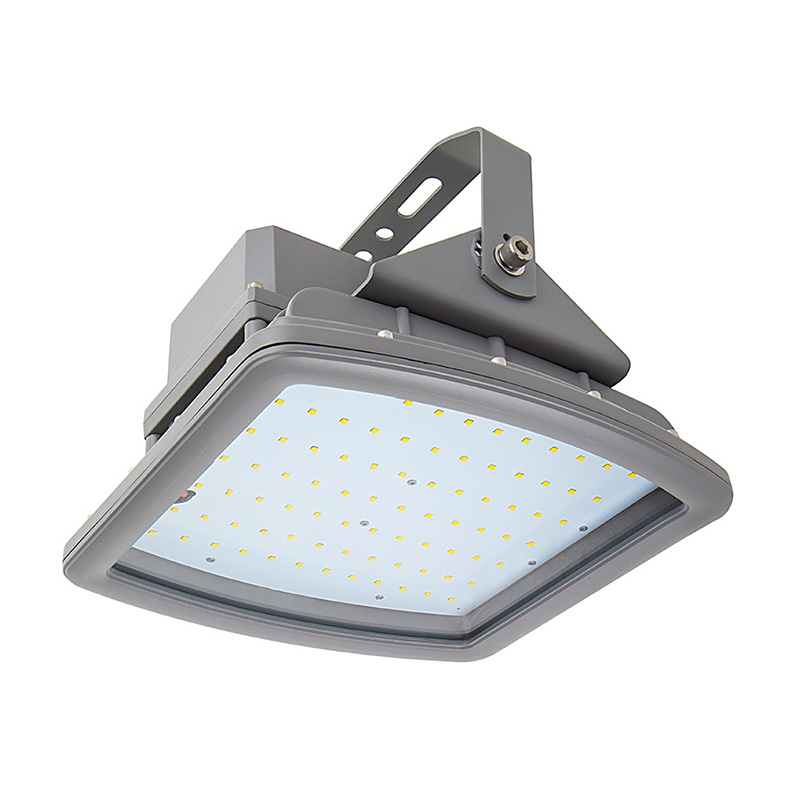

| REP-J200 | 185W | 20880LM | 12KG | 400×400×185mm | IP68 | IK10 | Download |
| REP-L80 | 80W | 8000LM | 11KG | 650×280×90mm | IP68 | IK10 | Download |
Materials & Finish
- Housing: Die-cast aluminum
- Finish: Anti-corrosive powder coating
- Lens: Super Clear Tempered Glass
- Arc bracket rotatable 360°
- Rugged A4 316 stainless steel bracket
- Highly Efficient Heat Dissipation
- Multiway Air Flow+ Aluminum Cooling Fin
Driver
- LED Driver Brand: Meanwell
- AC Input Range: 100-305Vac, 50/60Hz
- AC Inrush Current: Cold Start, 65A at 230Vac
- DC Input Range: 142-431Vdc
- Power Factor:>0.9
- THD: <10%
- Surge Protection: With 6KV/4KV
- Working Temperature: -40° ~ +90°
- Driver Efficiency: >93%
- Warranty: 5 years
Optical
- Led Chips : Bridgelux
- Lumen Efficiency: 116lm/w
- Color Temperature: Warm White Like 2700K, 3000K, 4000K, and Cool White like 5000K, 6000K, 6500K, or red, green, blue, RGB
- SDCM: <5
- LM80 report available
- Dimming Options: PWM/0-10V/1-10V/DALI/ZIGBEE
- DC Version: DC24V or DC12Volt.
- DMX512
- Plug can be supplied based on request

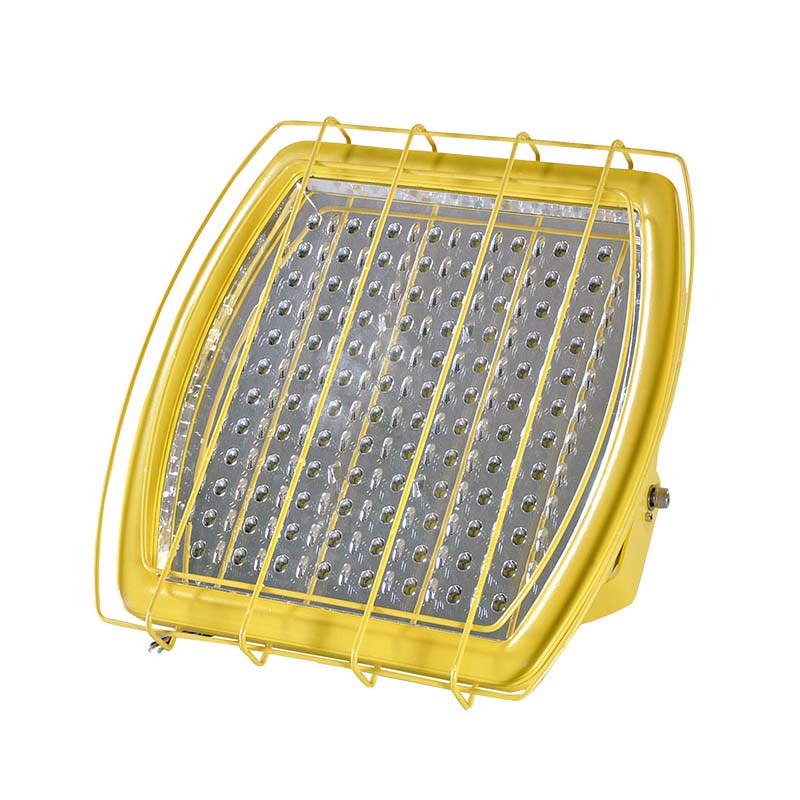

- Protection grid can be supplier based on request
- Visor can be supplier based on request

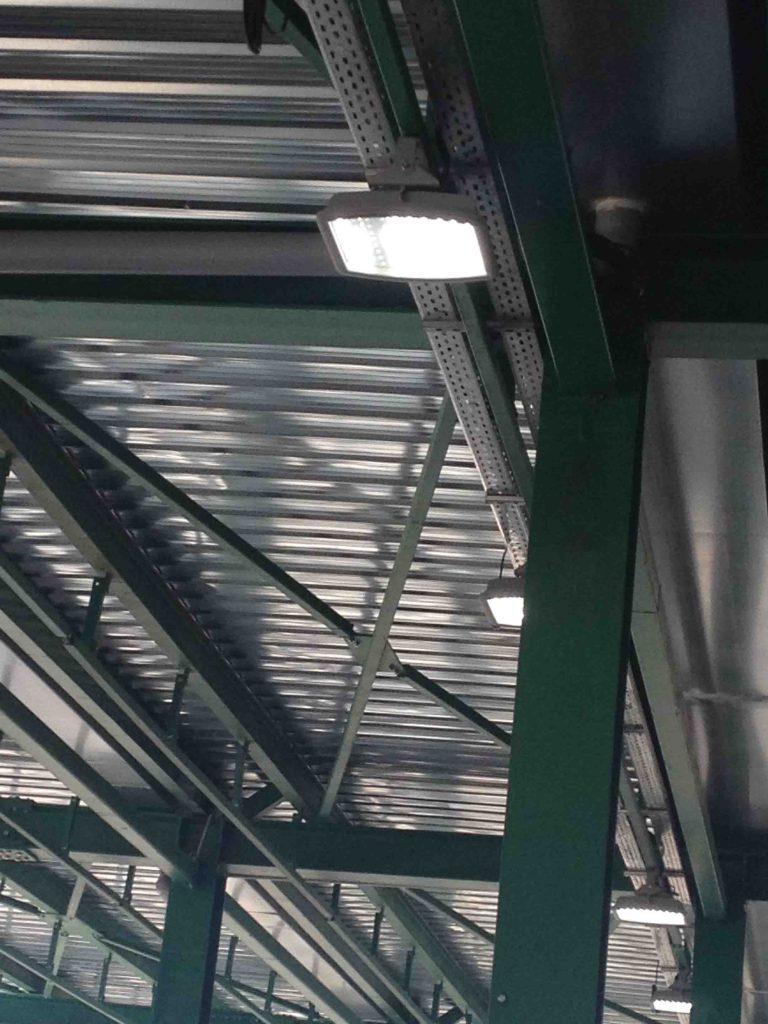

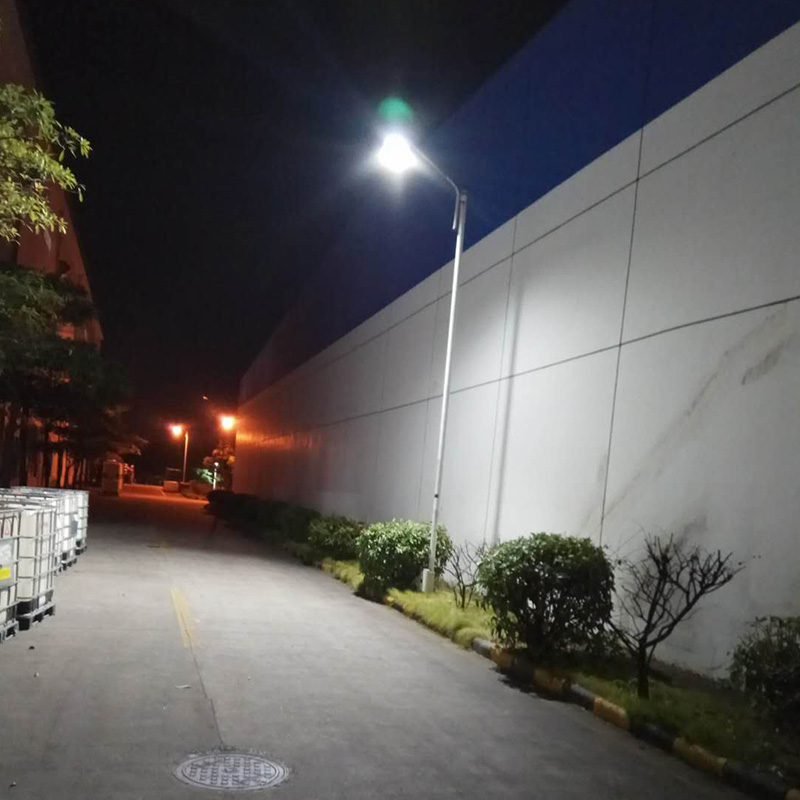

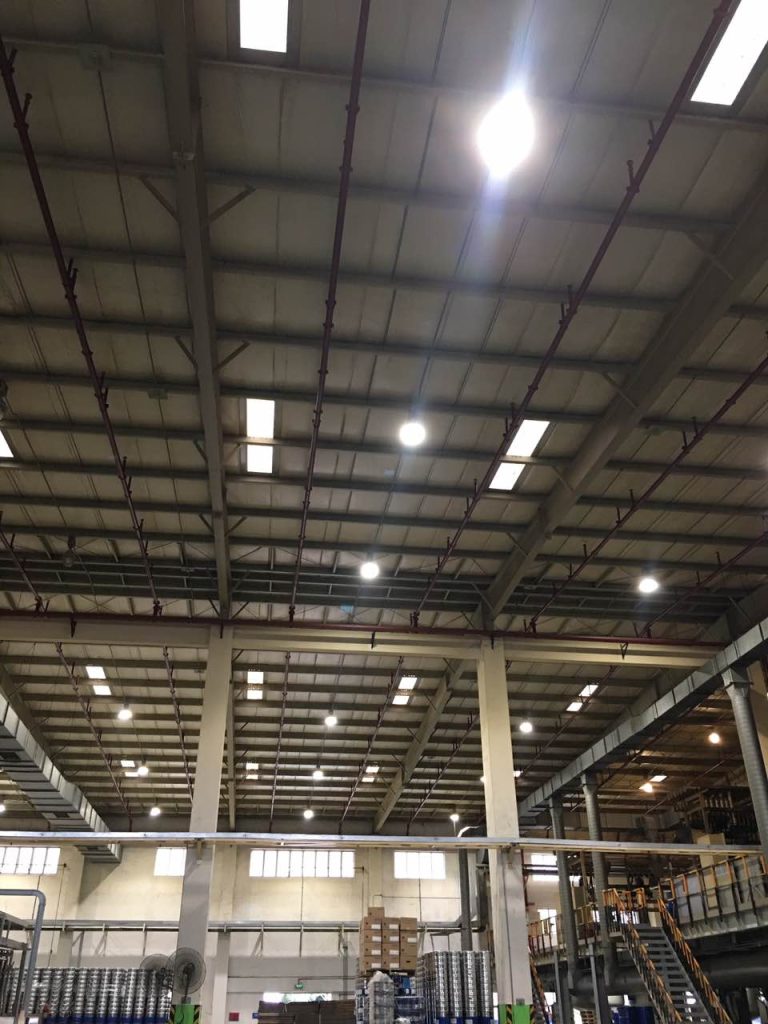

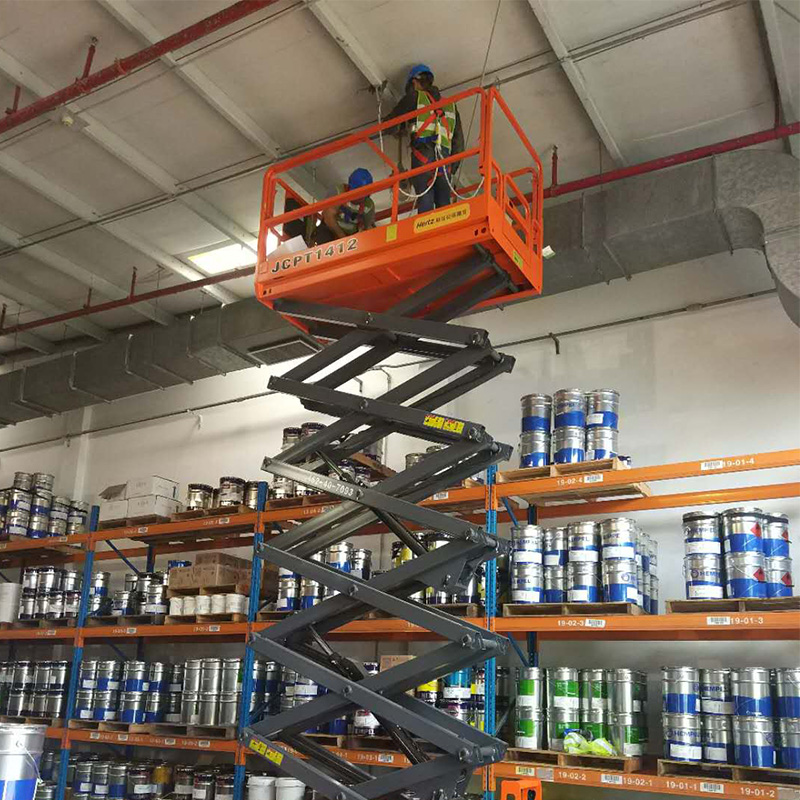

Project References

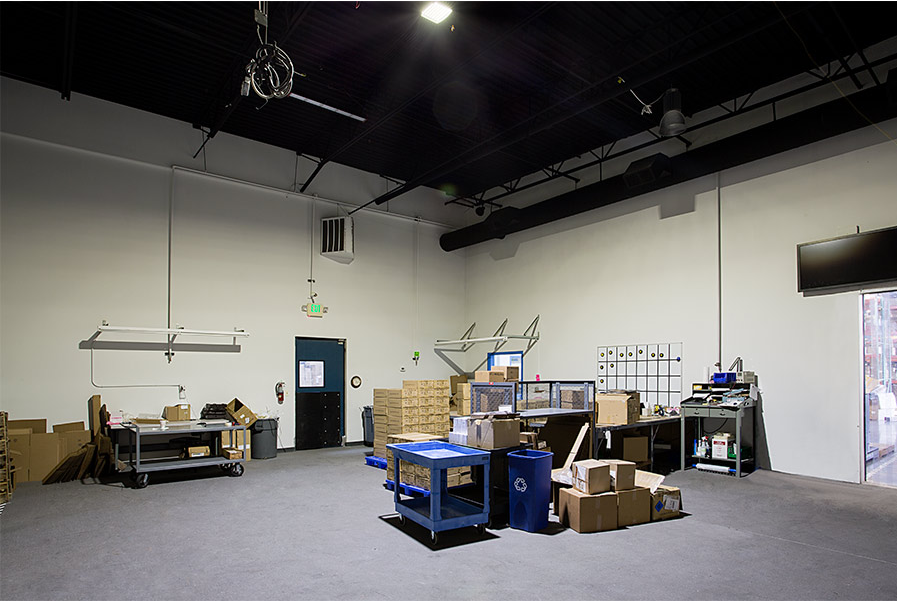

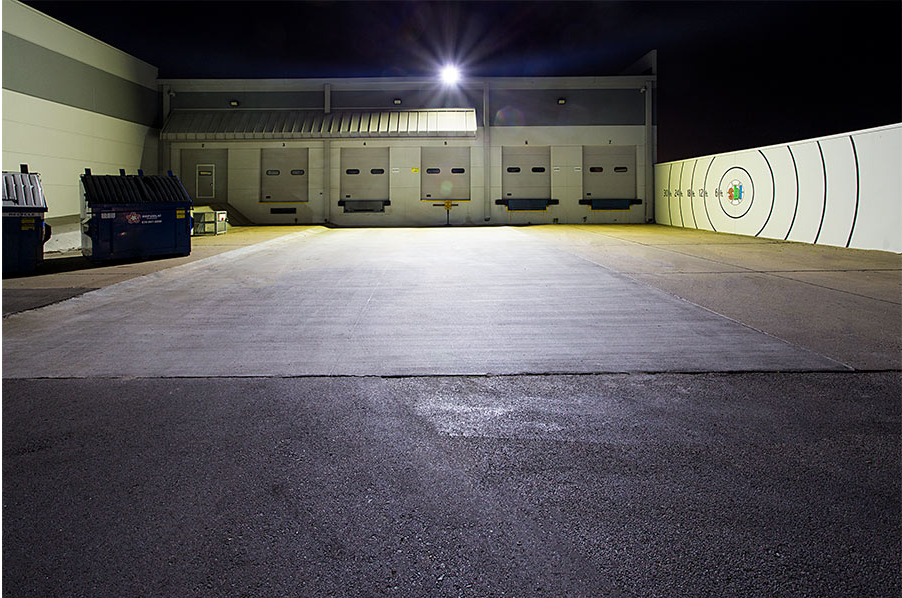

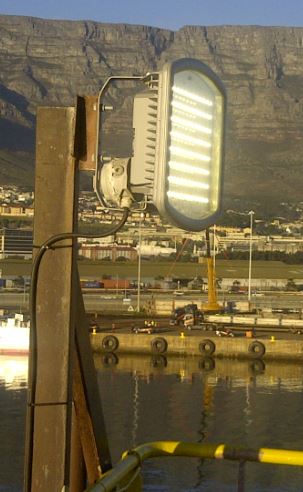

Suitable for a variety of outdoor and indoor different engineering projects especially for hazardous environment, including petrol station lights, mining lights, marine lights, high mast lights, etc.
